Be Quiet! Pure Base 501 Airflow Window Gaming Case, ATX w/ Glass Side, Compact Design, 2 Pure Wings 3 Fans, High Airflow Front & Top, USB-C, Black

Be Quiet! Pure Base 501 Airflow Window Gaming Case, ATX w/ Glass Side, Compact Design, 2 Pure Wings 3 Fans, High Airflow Front & Top, USB-C, Black

SKU: BGW74
Regular price £85.01
Regular price Sale price £85.01
Sale Sold out
Shipping calculated at checkout.




Comfortably compact

Pure Base 501 Airflow Window Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.

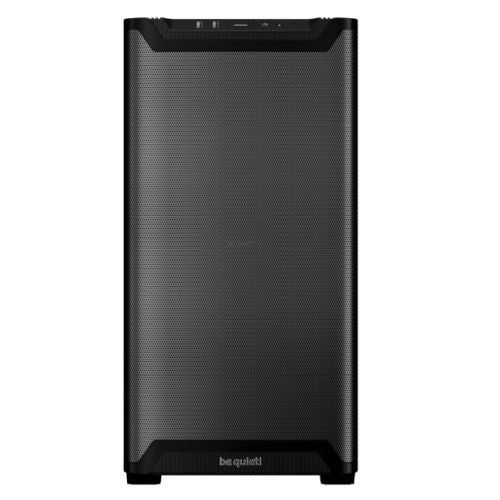

  • High airflow intake front panel and top cover for maximum performance
  • 2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
  • Generous space for high-end graphics cards and large coolers, despite compact footprint
  • Optional vertical graphics card installation
  • Water cooling ready for radiators up to 360mm
  • USB 3.2 Gen. 2 Type C for best connectivity
  • Comfortable cable management with clever cable routing design
  • Side panel made of tempered glass





Reduced To The Max

Classic appearance
Without any distractions, Pure Base 501 Airflow Window Black is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.





Perfect Case Fan

Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.






More Than Meets The Eye

Generous space for high-end hardware

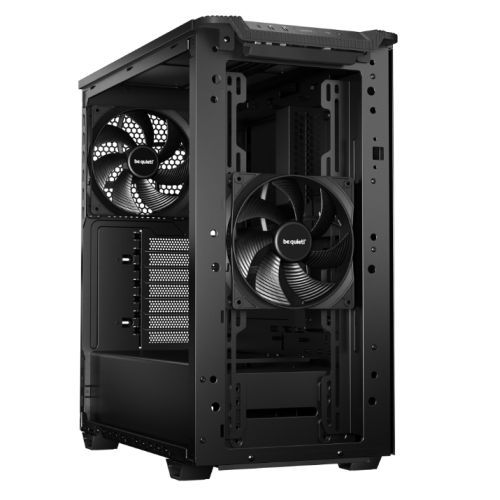

Despite its compact dimensions, Pure Base 501 Airflow Window Black offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.






Way up!

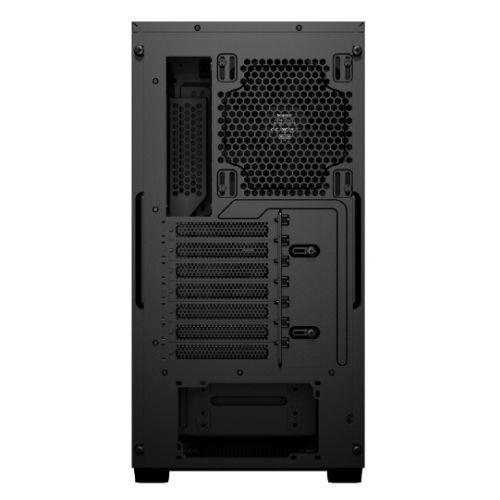

With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.






Inventory Management

With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Window Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.






Connect With Me

State-of-the-art technology for your system

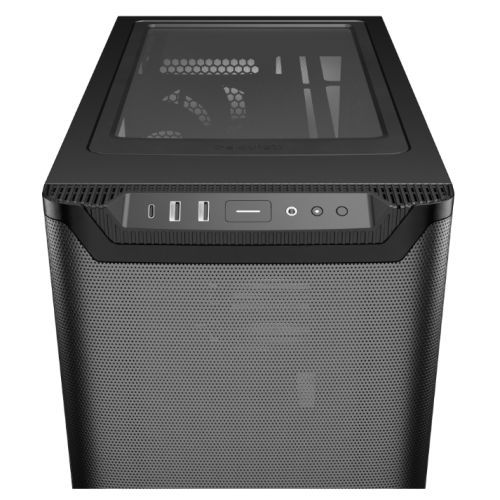

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.






Show Me What You've Got

A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your Pure Base 501 Airflow Window Black. The window is made of tinted and tempered glass with black painted side bars.




Description

Specification

  • Form Factor: ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: "ATX, Micro ATX, Mini ITX"
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.2 Gen2 Type-C
    2 x USB 3.2 Type-A
    Mic + Audio
  • Drive Bays: 2 x 3.5""
    5 x 2.5""
  • Expansion Slots: 7 x Expansion Slots
  • Cooling System: Included:
    Front: 1 x Pure Wings 3 140mm PWM Fan
    Rear: 1 x Pure Wings 3 140mm PWM Fan

    Fan Mounts:
    Top: 2 x 140 / 2 x 120 mm
    Front: 2 x 140 / 3 x 120 mm
    Side: None
    Rear: 1 x 140 / 1 x 120 mm
    Bottom: None
    PSU shroud: None
  • .:
    Radiator Support:
    Front: Up to 360 mm
    Top: Up to 240 mm
    Side: None
    Rear: Up to 140 mm
    Bottom: None
  • Colour: Black
  • Material: Top Cover: Steel
    Front Panel: ABS
    Side Panel: Steel
    Side Panel Window: Glass
    Stands: ABS
  • Compatibility: GPU Max Height:
    368 mm

    CPU Cooler Max Height:
    178 mm

    PSU Max Length:
    180 mm
  • Weight/Dimensions: 7.2 kg
    Excl. stands (LxWxH): 450 x 231 x 449 mm
    Incl. stands (LxWxH): 450 x 231 x 463 mm
  • Additional Features: Compact design
    High airflow intake front panel and top cover
    Optional vertical graphics card installation
    Comfortable cable management with clever cable routing

    See Overview for more details

  • Accessories: Screw set (Drives/Motherboard)
    1 x Additional standoff
    12 x Cable ties
  • Package Weight: To be confirmed
  • Warranty: 3 Years
