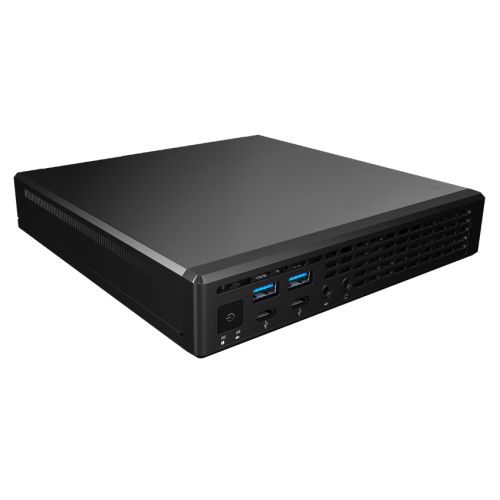

• Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM, Storage or O/S
1 2

ASROCK

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM, Storage or O/S

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM, Storage or O/S

SKU: 90BXG3Z01-A20GA0F
£195.91
£195.91
Sale Sold out
Shipping calculated at checkout.



Jupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.

  • AM4 Socket APUs, up to 65Watts
  • AMD X300 Chipset
  • 178 x 178 x 34mm / 1.07L
  • 2 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen1
  • 2 x USB 2.0
  • DisplayPort, HDMI, D-Sub
  • M.2 (2280) slot for SSD (PCIe / SATA 6Gb)
  • M.2 (2230) slot for Wi-Fi
  • 2W Speaker, TPM V2.0
  • Support DASH Standard




Advanced AM4 Platform

AMD AM4 Socket APU
Support 5000/4000/3000/2000 Series APU, up to 65W

High Speed DDR4 Memory
DDR4-3200MHz (Cezanne/Renoir)
DDR4-2933MHz (Picasso/Raven)

High Performance Thermal
Copper based heatsink
High efficiency blower






Dual Storage & Wireless

Ultra M.2 Slot
PCIe Gen3 x4 & SATA6Gb M.2 (2280)

SATA 6Gb Hard Drive Bay
Support 7mm/9.5mm height 2.5” SSD/HDD

M.2 For Wi-Fi Module
Optional Intel® AC-3168, AX200 Wi-Fi






Rich USB Connectivity

Front Side
2 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A

Rear Side
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0






Enhanced Creativity

3 Video Outputs
HDMI 4K@60Hz
DisplayPort 4K@60Hz
D-Sub FHD@60Hz
Supports up to 3 displays simultaneously






Enterprise Solutions

DASH LAN(optional)
Provide secure out-of-band and remote management of desktop via intranet/internet.

TPM 2.0 (optional)
Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.






Anti-Thief & Speaker

Chassis Intrusion
Get notification if chassis of Jupiter has been opened.

Native 2W Speaker
Jupiter X300 adopts amplifier and 2 watt speaker.






VESA Mount & Stand

Tri-direction VESA mount let you mount Jupiter behind monitor.
Use Vertical stand to save desk space.









Description

Specification

  • #Hide#Fully Built / Barebone: Barebone
  • Tower / Small Form Factor: Small Form Factor
  • Chassis: Asrock Jupiter Mini Desktop
  • Processor: None
  • Processor Details: Supports AMD AM4 Socket 65W APUs
  • Chipset: AMD X300
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • #Hide#Processor: None
  • Memory: None
  • Memory Details: 2 x SO-DIMM DDR4
    Max. 64GB (non-ECC)
    Cezanne/Renoir APU – DDR4-3200MHz
    Picasso/Ryzen APU - DDR4-2933MHz
  • Hard Drive: None
  • SSD Drive: None
  • Optical Drive: None
  • Supported Drives: 1 x SATA 6Gb 2.5"""" 7mm/9.5mm Hard Drive
    M.2 2280 PCIe Gen3 x4 & SATA 6Gb
  • Operating System: No O/S
  • Front I/O: 2 x USB 3.1 Gen1 Type-C
    2 x USB 3.1 Gen1 Type-A
    1 x Head Phone with Mic Jack
    1 x Mic-In
  • Back I/O: 1 x VGA
    1 x HDMI
    1 x DisplayPort
    2 x USB 3.1 Gen1 Type-A
    2 x USB 2.0
    1 x RJ45
  • LAN: 1 x RJ45 Gigabit LAN
    Realtek RTL8111GN
  • Wireless: 1 x M.2 (2230) Key-E Slot (module sold separately)
  • Sound: 1 x 2W Speaker
    Realtek ALC233
  • Expansion: 1 x 4-Pin Fan Connector
    1 x DC-In Jack (Supports 19V Power Adapters)
    1 x Internal Speaker Header
    1 x 2-Pin Chassis Intrusion Header
  • Power Unit: 90W/19V Adapter
  • Keyboard and Mouse: No
  • Dimensions: Motherboard: 170 x 170 (Proprietary)
    Barebone: 178 x 178 x 34 mm (1.0L)
  • Additional Features: Integrated cooling solution
    Copper based heatsink
    High efficiency blower
    Kensington lock
    Key lock
    VESA: 75 x 75mm / 100 x 100 mm
    Chassis Intrusion
    Vertical stand included
  • Package Weight: 2.1500 kg
  • Package Type: Retail
  • Warranty: 2 Year Replacement Warranty
  • #Hide#Memory: DDR4
View full details
