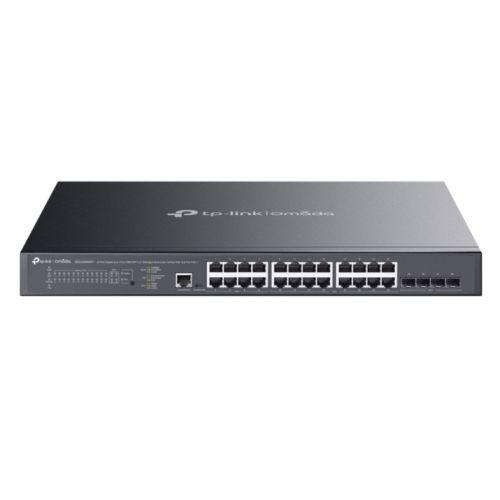

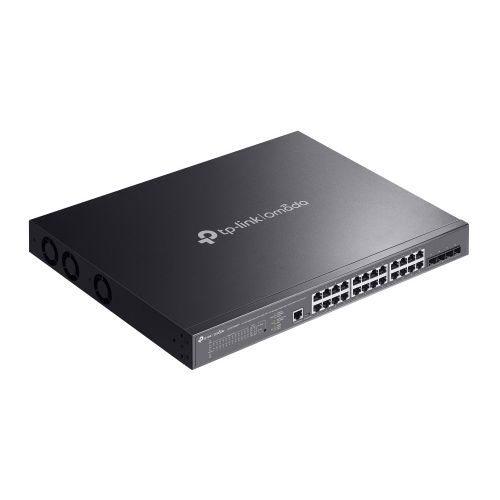

TP-LINK (SG3428XMPP) Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Rackmountable

TP-LINK (SG3428XMPP) Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Rackmountable

SKU: SG3428XMPP
Regular price £558.73
Regular price Sale price £558.73
Sale Sold out
Shipping calculated at checkout.



Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

  • 4x 10 Gbps SFP+ slots
  • 8x Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 16x Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 500 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design





Empowering the High-Power Devices with Gigabit PoE++ Ports
  • 8x Gigabit PoE++ RJ45 Ports
  • 16x Gigabit PoE+ RJ45 Ports
  • Budget Up to 90W per PoE++ Port
  • Total 500W PoE Power




Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.





Multiple Application Scenarios
  • Surveillance - Works with IP Cameras
  • Conference Call - Works with IP Phones
  • Wi-Fi Coverage - Works with Access Points
  • Wired Connections - Works with Non-PoE Devices such as PCs and Printers



Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 24
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: 10G SFP
  • Interface(s): "24 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
    4 10G SFP+ Slots
    1 x RJ45 Console Port
    1 x Micro-USB Console Port"
  • PoE Ports (RJ45): Standard: 802.3at/af/bt compliant
    PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
    PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port)
    Power Budget: 500 W
  • Switching Capacity: 128 Gbps

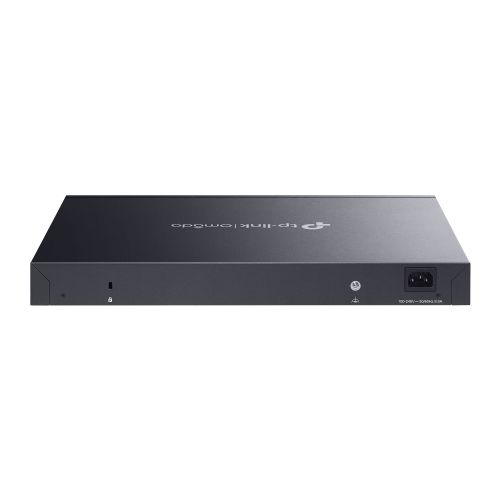

  • Power Supply: 100-240 V AC~50/60 Hz
    Max Power Consumption: 605.5W (110V/60Hz) ( with 500W PD connected)
  • Dimensions: (WxDxH) 440 x 330 x 44 mm
  • Mac Address Table: 16 K
  • Packet Forwarding Rate: 95.23 Mpps
  • Jumbo Frame: 9 KB
  • Additional Features: Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule

    ISP Features:
    L2PT (Layer 2 Protocol Tunneling)
    Device Link Detect Protocol (DLDP)
    PPPoE ID Insertion
    ERPS
    802.3ah Ethernet Link OAM
    DDM
    sFlow
  • Quality of Service: "8 priority queues
    802.1p CoS/DSCP priority
    Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
    Bandwidth Control: Port/Flow-based Rating Limiting
    Smoother Performance
    Action for Flows: QoS remark (802.1P Remark, DSCP Remark)"
  • Layer Features: "L2 and L2+:
    128 IP Interfaces: Support IPv4/IPv6 Interface
    Static Routing: 48 IPv4/IPv6 Static Routes
    Static ARP: 128 static entries
    512 ARP Entries
    Proxy ARP
    Gratuitous ARP
    DHCP Server
    DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
    DHCP L2 Relay
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    802.3x Flow Control
    Mirroring

    "
  • .: "L2 Multicast:
    Supports 1000 (IPv4, IPv6) IGMP groups
    IGMP Snooping
    IGMP Authentication
    Multicast VLAN Registration (MVR)
    MLD Snooping
    Multicast Filtering: 256 profiles and 16 entries per profile"
  • VLAN: "VLAN Group: Max 4K VLAN Groups
    802.1q Tagged VLAN
    MAC VLAN: 30 Entries
    Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    Private VLAN
    GVRP
    VLAN VPN: VLAN Mapping, VLAN Replace
    Voice VLAN"
  • Access Control: "Time-based ACL
    MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
    IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
    Combined ACL
    Packet Content ACL
    IPv6 ACL
    Policy: Mirroring, Redirect, Rate Limit, QoS Remark
    ACL applies to Port/VLAN"
  • Security: IP-MAC-Port Binding
    IPv6-MAC-Port Binding
    DoS Defend
    DHCP Filter
    Static/Dynamic Port Security: Up to 64 MAC addresses per port
    Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
    802.1X
    AAA (including TACACS+)
    Port Isolation
    Secure web management through HTTPS with SSLv3/TLS 1.2
    CLI management with SSHv1/SSHv2
    IP/Port/MAC-based access control
  • Management: "Require Omada Controllers:
    Omada App
    Centralized Management
    Cloud Access
    Zero-Touch Provisioning

    Management Features:
    Web-based GUI
    Command Line Interface (CLI) through console port, telnet
    SNMPv1/v2c/v3 SDM Template
    DHCP/BOOTP Client
    802.1ab LLDP/LLDP-MED
    DHCP AutoInstall
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    Password Recovery
    SNTP
    System Log"
  • Environment: Operating Temperature: 0–40°C (32–104°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing

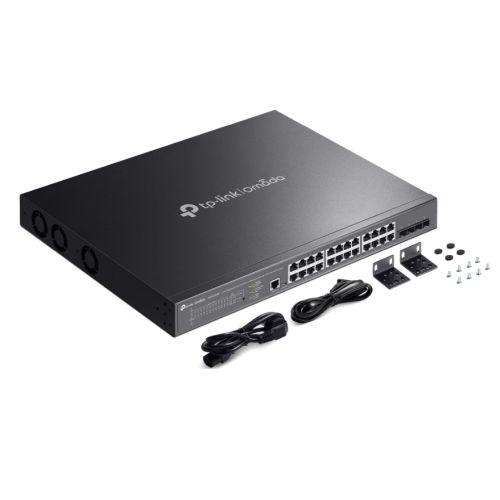

  • Package Contents: SG3428XMPP Switch
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 6.2000 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
